Tank Volume Inventory Dashboard

Community User

Wed, Oct 1 2025

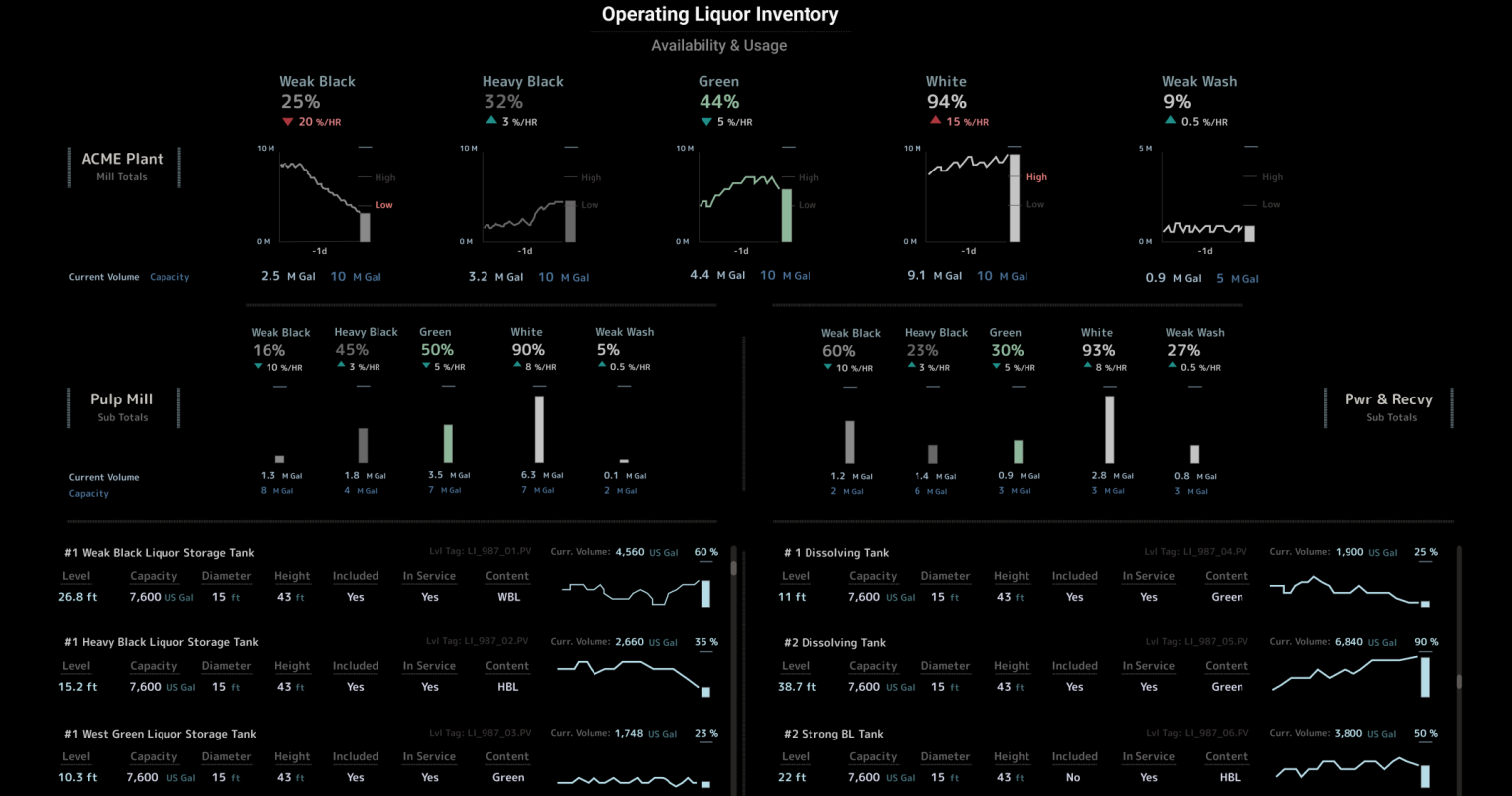

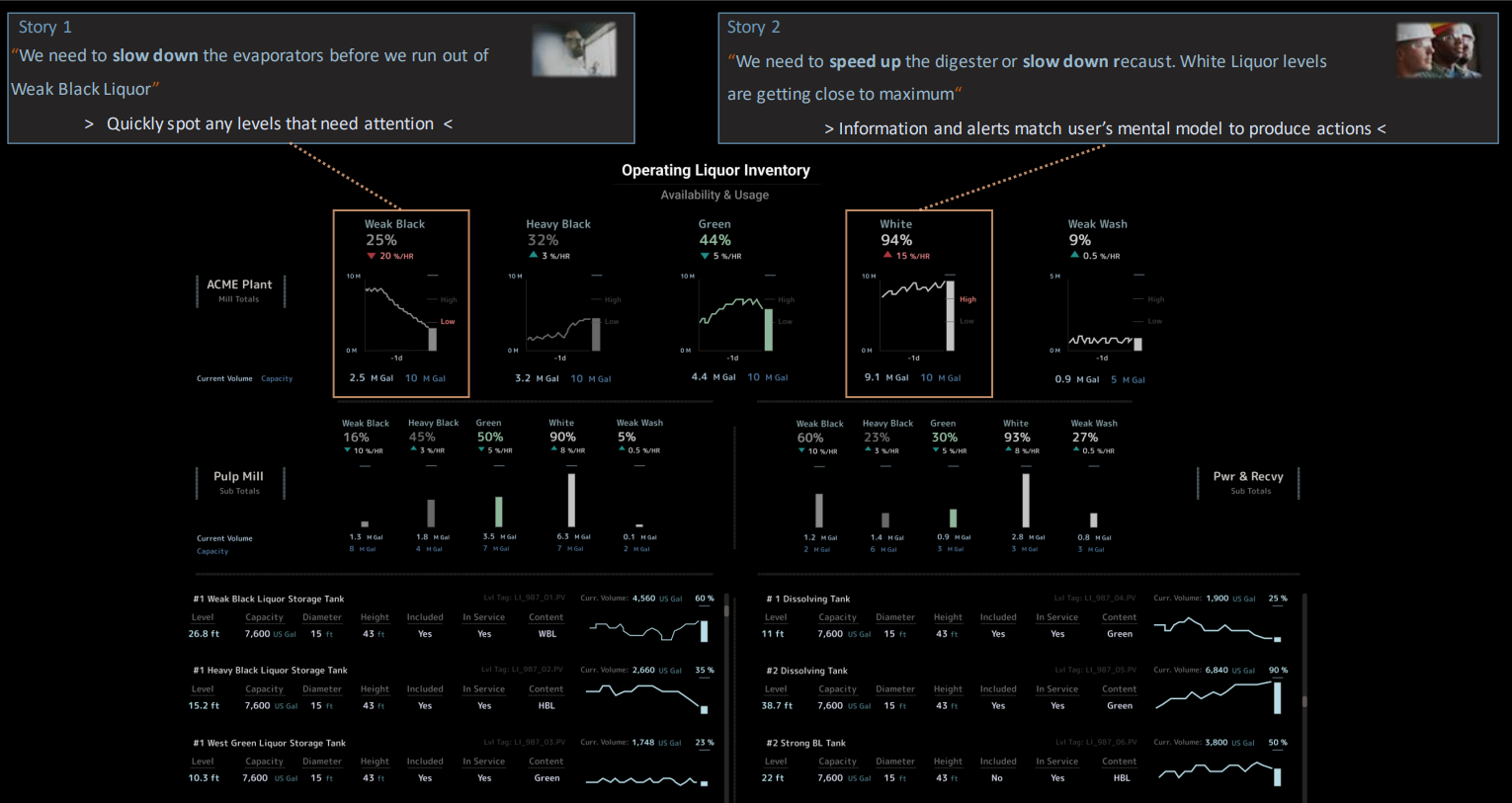

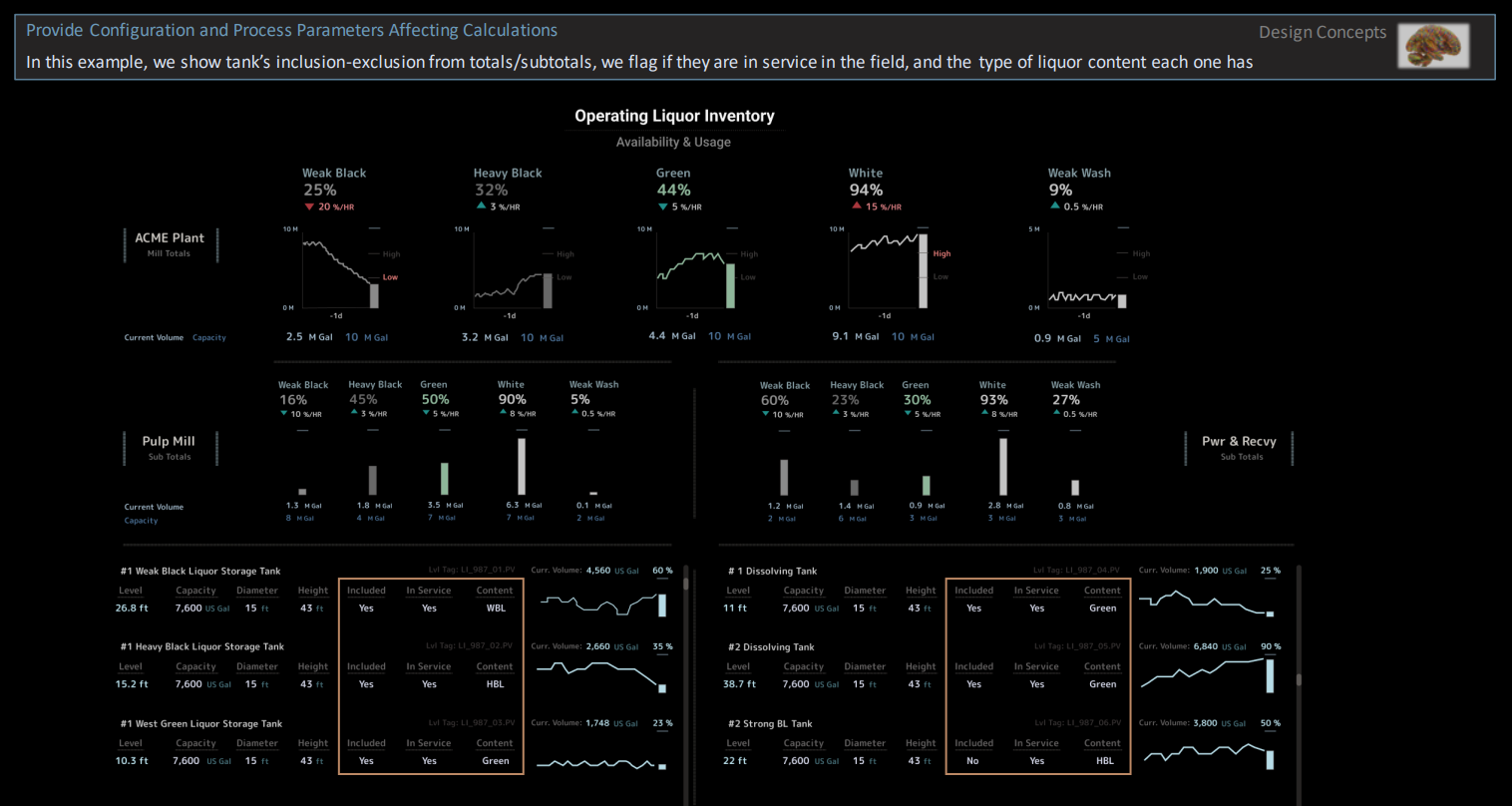

This dashboard design helps track the availability and usage of chemicals in a Kraft pulping operation.

This dashboard is build-able in AVEVA PI Vision

Please, let me know any thoughts.

Abel

lpagemorin 22 days ago in reply to Abel.Padillac

Abel.Padillac thanks for the clarification, I missed that. All great then!
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
Abel.Padillac 22 days ago in reply to lpagemorin

Thanks, lpagemorin — the AF Analytics + multi-state symbols approach would definitely work for implementing the arrows in PI Vision.

Just to clarify, the dashboard shown here is a Figma recreation for privacy, but the original was built directly in PI Vision.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
lpagemorin 26 days ago in reply to Bill Bretschneider

Hi Bill Bretschneider , now we know he was using another visualisation tool, but this could be done with AF Analytics for the rate of change calculation and then multi-state symbols to display the green or red triangle/arrow, thanks.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
Community User 2 months ago

Note: This dashboard was originally built in production using PI AF Analytics and PI Vision. For the purpose of this post, I recreated the visuals in Figma using the same layout and colors. All values shown are simulated.
- Cancel
- Vote Up 0 Vote Down
- Sign in to reply
- More
- Cancel
Bill Bretschneider 2 months ago

This is great. How do I learn how to build the up and down arrows with the rate of change indicators? I haven't seen them before. (Perhaps I'm using an older version of Pi Vision?)
Thanks.
