End Trigger for Event Frame Generation Analysis not being triggered

Yong_Boon

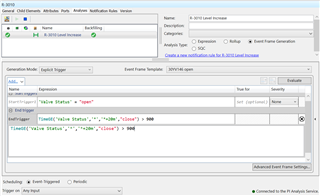

I have an event frame generation analysis as shown below:


It has been capturing event frames as required and worked properly for at least one week. However, recently, some issues have arisen: Event frames are not being captured. In the event frame search, we are able to see that the end trigger of one of the event frames is not being triggered, despite the fact that the "end trigger condition" has been met. This is because we can see that the event frame is still ongoing and has no "end time" indicated.

"Preview results" show that the system is able to correctly capture all the event frames based on the start and end trigger conditions. Backfilling of the analysis also does not solve the problem.

Parents
  • 0

    I think this might be due to the scheduling. The End Trigger is time-based, while the scheduling is event-based. The End Trigger is when the "Valve Status" state is >= the "close" state for more than 15mins.

    The analysis might not be evaluated frequently enough as it will only do so when the "Valve Status" updates.

    You might have better results running this on a 5 minute frequency, and also changing the End Trigger to >= 900 instead of > 900.

    Be aware, there are two risks with changing to clock scheduled:

    1. It is possible to miss the "open" state if it doesn't hold for at least 5 mins.
    2. The start of the event frame will not be when the "valve status" changed to "open", but when the analysis evaluates this. This could be up to five minutes off.

    You can get the best of both clock and event scheduled by creating an independent analysis to writes a value to a PI point every 5 minutes and including this as an input to the event frame analysis and continuing to use event based. The analysis will evaluate every five minutes based on that value, and additionally whenever the "valve status" updates. You won't miss the valve opening, and it'll check every five minutes to see if it has been closed for at least 15mins.

  • 0 in reply to Mike horrocks

    Good catch!

    (But why would the 'Preview Results' show EF's captured correctly?)

  • 0 in reply to Community User

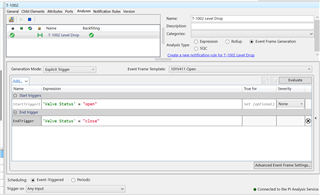

    Ok I have another configured another similar analysis for several other elements, but with a different end trigger and they seem to run with no issues:


    However, due to the nature of plant operations, I cannot simply configure the end trigger for the reactor to be "valve status" = "close", as doing so would not capture the whole event that I want. (Because the valve does close intermittently during the event, but for short periods each time, but I don't want the event to end during those brief closing periods)

Reply
  • 0 in reply to Community User

    Ok I have another configured another similar analysis for several other elements, but with a different end trigger and they seem to run with no issues:


    However, due to the nature of plant operations, I cannot simply configure the end trigger for the reactor to be "valve status" = "close", as doing so would not capture the whole event that I want. (Because the valve does close intermittently during the event, but for short periods each time, but I don't want the event to end during those brief closing periods)
